M89 Smart Toilet
  • page view:12
  • Installation Type:Floor mounted
  • Drainage Pattern:S-Trap
  • Waterproof grade:IPX4
  • Rated Voltage:AC220V 50Hz
  • Rated Power:1450W
  • Feature:Automatic Operation, Dual Flush
0

Hotline:13535740611

M89 Smart Toilet





Specification
Rated Voltage AC220V 50Hz
Rated power 1450W
Power line length 2.0M
Water pressure range 0.10(dynamic)-0.70Mpa(static)
 Flush water capacity 5.0L
Waterproof Grade   IPX4
Product Size  LWH:674X403X466(mm)
Cleaning application   Water pressure control With 4 stage adjustment
 Water Temperature control With 5 stage adjustment :25℃~40℃
 Water Temperature heating power 1600W
Safety applicant  Thermal fuse/Thermal protector/Water inlet&outlet temperature detection/flow protection
Posterior washing  0.4~0.75L/min
Feminine washing   0.4~0.75L/min
 Drying application Wind speed  More than 4m/s
Drying heating power 220W
Wind temperature With 5 stage adjustment:30℃~60℃(can set room temperature)
Safety applicant  Recoverable heat protector/Thermal fuse
Seat Heating  Heating power  45W
Seat temperature With 5 stage adjustment:33℃~42℃(can set room temperature)
Buffering function  Electric damping
 Safety device Recoverable heat protector/Thermal fuse/Temperature closed control
 Deodorant applicant Deodorant fan power  1.2W
Deodorant Activated carbon
Remote Control specification LWH:176X62X18(mm) 2pieces alkaline batteries(NO.7)

Features

Soft Night Light


Hip wash/Women wash Nozzle(Independent Nozzle)


Foot sensor to open cover


Intelligent anti-hot seat(TEMP adjustable)


Control Panel
.jpg
 Function
Status LEDS   Display window  Dry  Water pressure“+”
Hip wash   Women wash  Wide-width keys Water pressure“—”
 Adjust water Temperature Night Light  Flip  Auto Flip
 Flip Circle Deodorization  Flush/Auto Flush  Wind Temperature
Seat Temperature  Message/Cleaning  Stop  Backward/Forward


Blueprint for smart toilet

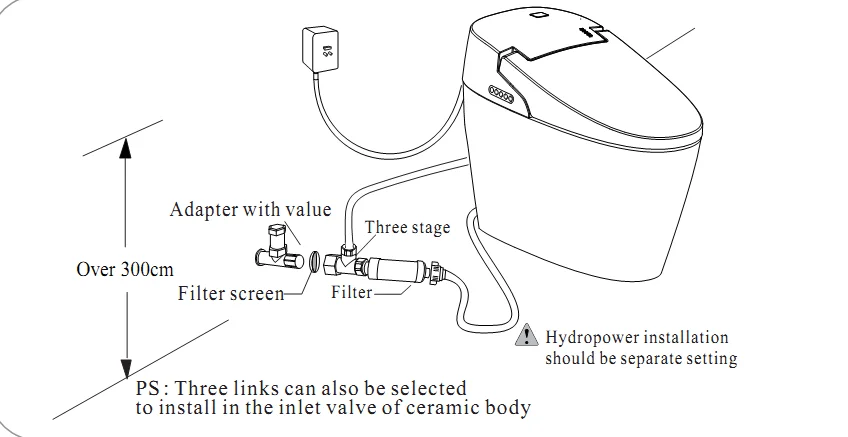

Installation



Production

Packaging & Shipping
Size & KGS: 85×60×72=0.37cbm   59KGS/UNITS
seaworthy carton with foam inside
